How to choose the best MBBR Media for your application

The Moving Bed Biofilm Reactor (MBBR) is a highly efficient wastewater treatment technology valued for its compact design and versatility in treating various wastewater type. The selection of appropriate MBBR media, which serves as the substrate for biofilm formation, is critical to achieving optimal treatment efficiency. This article provides a comprehensive guide to selecting the best MBBR media, presented by MBBRMediadirect.com, a company dedicated to delivering tailored media solutions. This guide focuses on criteria, including surface area, density, material properties, shape, size, voidage, hydrophilicity, temperature tolerance, and wear resistance. Drawing on academic research (Membranes) and industry insights (Levapor), we offer practical recommendations and case studies to help engineers and practitioners optimize MBBR systems for cost-effectiveness and regulatory compliance.

1. Introduction

Wastewater treatment is essential for environmental and public health protection. The MBBR system, combining suspended-growth and attached-growth processes, is widely adopted for its high treatment efficiency and minimal footprint. In MBBR systems, microorganisms form biofilms on media that move freely within the reactor, and the choice of media significantly impacts pollutant removal rates, energy consumption, and maintenance needs (Levapor). Poor media selection can lead to inefficiencies, making it critical to understand the selection criteria.

2. Understanding MBBR Media

MBBR media, or biocarriers, are floating materials that provide surfaces for biofilm formation, enabling the biological degradation of organic matter and nutrients (Carewater Solutions). Common media types include sponge-type, chip-type, coin-shaped, tube-shaped, and advanced options like 3D-printed biocarriers (Membranes). These media must be chemically inert, durable, and capable of supporting diverse microbial communities to ensure efficient mixing and oxygen transfer (Levapor). MBBRMediadirect.com specializes in offering media that meet these requirements, tailored to specific wastewater treatment needs.

3. Key Criteria for MBBR Media Selection

Selecting the optimal MBBR media requires careful consideration of several factors, each impacting system performance. Below are the primary criteria, with embedded citations linking to the sources.

3.1 Surface Area

A large specific surface area per unit volume is critical for maximizing biofilm growth and treatment capacity (Resources). Media with complex designs, such as spoked wheels or 3D-printed structures, provide higher surface areas, with 3D-printed biocarriers using 13X zeolite and halloysite achieving up to 590 m²/g (Membranes). For aerobic wastewater treatment, a specific surface area of approximately 1168 m²/m³ is recommended (Resources).

3.2 Density

The media’s density should be close to that of wastewater to ensure even distribution and efficient mixing, as excessive density increases aeration energy costs (Carewater Solutions). Polyethylene media, with a density slightly less than water, are commonly used for their energy efficiency (Carewater Solutions).

3.3 Material Properties

The material must be durable, chemically inert, and supportive of biofilm adhesion. Common materials like polyethylene and foam are valued for their porosity and resistance to degradation, while advanced materials like 13X zeolite and bentonite enhance surface area and pore volume (Resources). Hydrophilic surfaces promote faster biofilm formation, reducing start-up times (Levapor).

3.4 Shape and Size

The shape and size of media affect hydraulic retention time, mixing efficiency, and biofilm development. Complex shapes provide more surface area but may increase clogging risks, with 3D-printed cylindrical biocarriers demonstrating superior biofilm retention compared to traditional K1 biocarriers (Membranes). Common sizes include 10 mm × 7.5 mm and 25 mm × 10 mm, with customization available.

3.5 Voidage

Voidage, the empty space within media, ensures proper oxygen transfer and wastewater flow distribution, with high voidage designs like tube-shaped media preferred for high oxygen transfer rates (Levapor).

3.6 Hydrophilicity/Hydrophobicity

Hydrophilic surfaces allow faster biofilm formation, reducing start-up times, while hydrophobic surfaces may resist fouling but colonize more slowly (Levapor).

3.7 Temperature Tolerance

Media must withstand expected temperature variations, with polyethylene suitable for a wide range and advanced materials offering enhanced performance in specific conditions (Carewater Solutions).

3.8 Wear Resistance

Durable media minimize replacement frequency, with chip-type media offering higher wear resistance than sponge-type, and 3D-printed media achieving hardness values of 46 ± 5 MPa (Membranes).

###.Concurrent 3.9 Degree of Filling
The degree of filling, expressed as a percentage of reactor volume, affects biofilm retention and energy demands, with optimal percentages depending on media characteristics and wastewater properties (Levapor).

3.10 Biological Activity and Kinetics

Media surface properties and porosity influence microbial colonization and treatment kinetics, with high-porosity media enhancing nitrification and denitrification (Resources).

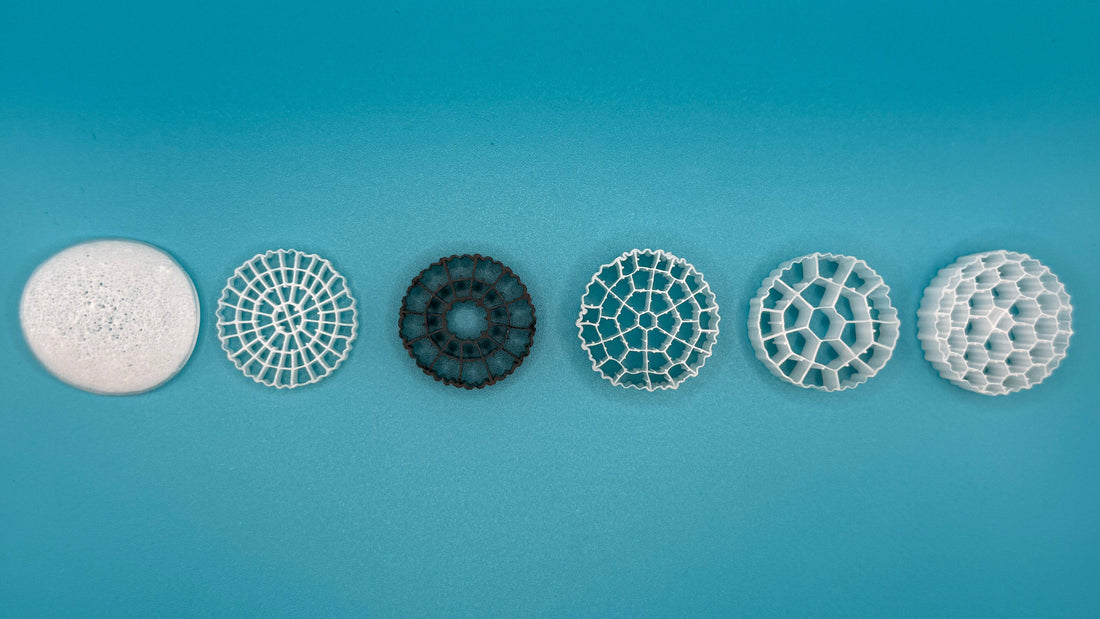

4. Types of MBBR Media

MBBR media come in various forms, each suited to specific applications:

  • Sponge-type media: High surface area but prone to wear.
  • Chip-type media: Thin, flexible, with good wear resistance.
  • Coin-shaped media: Minimal fouling, with wastewater filtering from both sides.
  • Tube-shaped media: Extended surface area but may accumulate biomatter.
  • Custom-designed media: Includes 3D-printed biocarriers for tailored performance.

 MBBRMediadirect.com, provides a diverse range of media options tailored to specific wastewater treatment needs, ensuring optimal performance and cost-effectiveness.

5. Case Studies and Examples

Recent research and industry applications provide valuable insights into media selection:

  • 3D-Printed Biocarriers: Research by Banti et al. (2023a) demonstrated that 3D-printed biocarriers made from 13X zeolite and halloysite outperformed traditional K1 biocarriers, supporting biofilm dry masses of 4980–5711 mg compared to 2.9–4.6 mg for K1 media (Membranes). These biocarriers favored microbial genera like Exiguobacterium (8.4%) and Mycobacterium (4.7%), enhancing nitrification and denitrification (Resources).
  • Material Impact on Microbial Communities: The same study found that 3D-printed biocarriers supported diverse microbial communities compared to K1 biocarriers, which had higher Acinetobacter (7%) and Rhodobacteraceae, indicating earlier biofilm stages (Resources).
  • Density and Aeration Efficiency: Media with density close to wastewater, such as polyethylene, reduce aeration energy costs, making them cost-effective (Carewater Solutions).

Table 1: Comparison of MBBR Media Types

Media Type Surface Area Wear Resistance Biofilm Adhesion Common Applications
Chip-type Very-High High Moderate Industrial wastewater, Municipal Water
Coin-shaped Moderate High Moderate Industrial wastewater


6. Practical Considerations in Media Selection

Several practical factors must be considered when selecting MBBR media:

  • Application-Specific Requirements: The type of wastewater and its pollutant composition influence media choice, with testing for COD, nitrogen, and phosphorus levels guiding selection.
  • Cost-Effectiveness: High-performance media may have higher upfront costs but offer long-term savings through durability and efficiency. MBBRMediadirect.com provides cost-effective solutions tailored to specific needs.
  • Operational Factors: Media should be easy to handle and compatible with existing systems, with lightweight, durable materials reducing complexity (Carewater Solutions).
  • Regulatory Compliance: Media must support treatment processes that meet local regulations for pollutant removal.

7. Conclusion

Selecting the optimal MBBR media is a multifaceted process requiring careful consideration of technical and practical factors. Key criteria include surface area, density, material properties, and biological activity, with advanced technologies like 3D-printed biocarriers offering enhanced performance.
